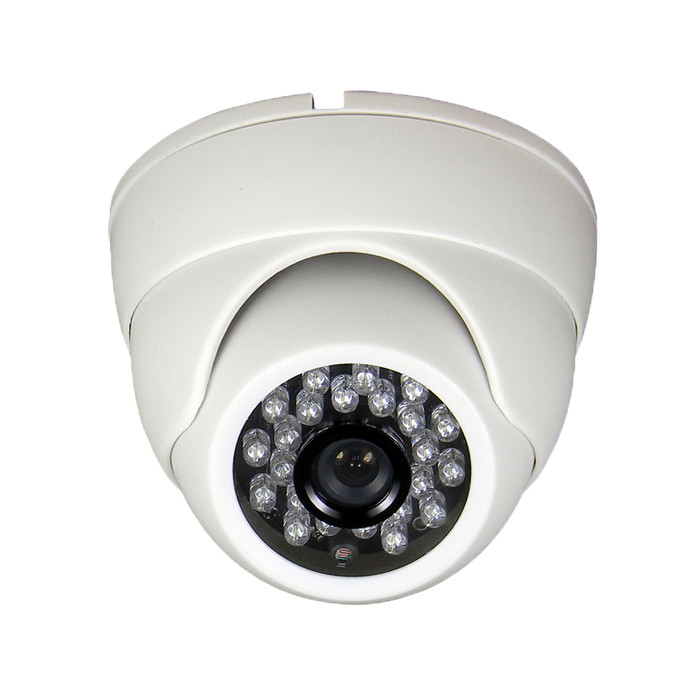

Plastic Dome Camera SONY/SHARP CCD IR LED: ￠5X23 PCS

Product Details:

Place of Origin:	CHINA
Brand Name:	JSUS
Certification:	CE
Model Number:	JS-DP20

Payment & Shipping Terms:

Minimum Order Quantity:	200PCS
Price:	FOB SHENZHEN
Packaging Details:	50PCS/CARTON
Delivery Time:	3-5Days
Payment Terms:	LC,TT,Western Union, Paypal
Supply Ability:	100000PCS/MONTH

Contact Now

Detailed Product Description

Model:	JS-DP20V	JS-DP20T	JS-DP20N	JS-DP20W	JS-DP20Q
Image Sensor:	1/3'' SONY	1/3'' SONY	1/3'' SONY	1/3'' CMOS	1/3'' CMOS
TV System:	PAL/NTSC
Horizontal Resolution	800TVL	1000TVL	700TVL	700TVL	700TVL
CCD+ DSP:	Sony 662/663+Effio-V	Sony 138+ FH8520	Sony810/811+Effio-E	CP8108+ICR	Pixelplus 3089+ICR
Pixels:	PAL:1028(H)×596(V), NTSC:1028(H)×508(V)	PAL:1296(H)×1041(V), NTSC:1280(H)×960(V)	PAL:976(H)×582(V), NTSC:976(H)×494(V)	PAL:976(H)×582(V) NTSC:976(H)×494(V)	PAL:976(H)×582(V) NTSC:976(H)×492(V)
IR LED:	￠5X23PCS
IR Distance:	20M
Lens:	3.6mm Board Lens
Mini Illumination:	0.001Lux/F1.2	0.001Lux/F1.2	0.001Lux/F2.0	0.001Lux/F2.0	0.0005Lux/F2.0
S/N Ratio:	≥52dB	≥52dB	≥48dB	≥48dB	≥48dB
AES:	1/50-1/60,000sec(PAL),1/60-1/60,000sec(NTSC)
Gamma Correction:	0.45
Sync system:	Internal Synchronization
Video Out:	1.0Vp-p,75Ω
Operation Temperature:	-10℃~50℃ / 10% ~ 95%RH
Storage Temperature:	-20℃~60℃ / 10% ~ 95%RH
White Balance:	ATW/Manual/Auto
Power Source:	DC12V 500mA
Demension:	Ø94 x 74(H) mm
Weight:	0.3KG
