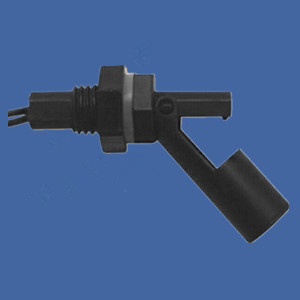

Horizontal install micro mini liquid water magnetic float level switch sensor 12V 24V

Horizontal install micro mini liquid water magnetic float level switch sensor 12V 24V

Horizontal install micro mini liquid water magnetic float level switch sensor 12V 24V

Product Details:

Place of Origin: CHINA
Brand Name: JSUS
Certification: CE&ROHS
Model Number: JS-YZ01

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Price: FOB SHENZHEN
Delivery Time: 5-7 days
Payment Terms: LC,TT,Western Union, Paypal
Supply Ability: 200000pcs/month
Contact Now
Detailed Product Description

Model:JS-YZ01 Water float level sensor

 Parameters

Output

 10 W

50 W

Max. Switching Voltage

 100 VDC

200 VDC

Max. Switching Current

 0.5 A

1.5 A

Min. Breakdown Voltage

 220 VDC

300 VDC

Max. Carry Current

 1.0 A

 3.0 A

Max. Initial Contact Resistance
Do not include the wire

                    100 mΩ

Temperature Rating

 -10 ~ +85

Material of float & E-ring

 PP

Material of body

         PP+GF

Material  of screw net

ABS

Leads

1034UL22AWG430mm length



































  Drawing

Horizontal install micro mini liquid water magnetic float level switch sensor 12V 24V
