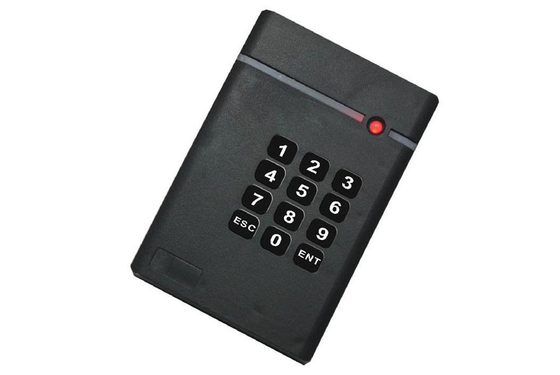

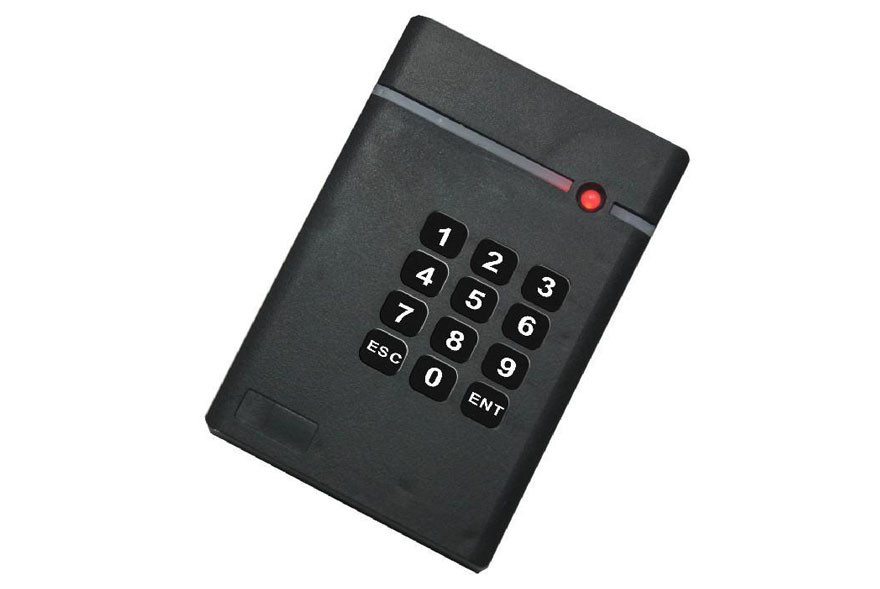

204A 5 to 10 cm short range 125 KHz or 13.56 MHz PIN keyboard reader with wiegand 26, 34 protocol

204A 5 to 10 cm short range 125 KHz or 13.56 MHz PIN keyboard reader with wiegand 26, 34 protocol

204A 5 to 10 cm short range 125 KHz or 13.56 MHz PIN keyboard reader with wiegand 26, 34 protocol

Product Details:

Place of Origin: CHINA
Brand Name: JSUS
Certification: CE
Model Number: PR204A

Payment & Shipping Terms:

Minimum Order Quantity: 500PCS
Payment Terms: Western Union, L/C, T/T
Supply Ability: 100000PCS/M
Contact Now
Detailed Product Description

204A 5 to 10 cm short range 125 KHz or 13.56 MHz PIN keyboard reader with wiegand 26, 34 protocol

Specification

*Wiegand 26bits/ Wiegand34bits Standard Format Data Output

*Less than 0.2 second Response Speed

*5-10cm Proximity Range

* Support EM-ID, M1card, 15693card, 14443A or 14443B Card

*Ambient Temperature:-25℃ to 75℃

*Ambient Humidity: 10%-90%

*Built-in Antenna

*Built-in LED (Double Color LED)

*Built-in Loud Speaker (Buzzer)

*DC 9V-16V Working Voltage. Standard 12V, 70mA Working Current

*90 Meters Communication Distance

*Real Time Data Transfer

*With Water-Proof Function

*Audiovisual indication: When a registered card is presented to the reader, the re

LED flashes green and the beep sounds.

*122*86*20(mm)

*Package: 100pcs per carton. Carton Size: 43.5*56*23(cm)
