Erfid-F21 PIN keyboard proximity card reader

Erfid-F21 PIN keyboard proximity card reader

Erfid-F21 PIN keyboard proximity card reader

Product Details:

Place of Origin: CHINA
Brand Name: JSUS
Certification: CE
Model Number: F21

Payment & Shipping Terms:

Minimum Order Quantity: 500PCS
Payment Terms: Western Union, L/C, T/T
Supply Ability: 100000PCS/M
Contact Now
Detailed Product Description

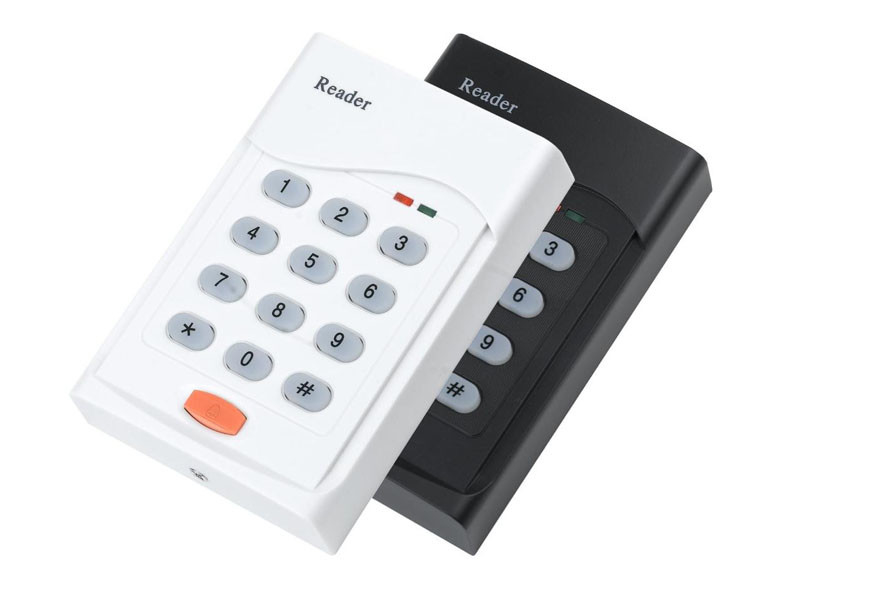

Erfid-F21 PIN keyboard proximity card reader

Specification


*Wiegand 26bits/ Wiegand34bits Standard Format Data Output

*Support ID (125 KHz),Mifare(13.56Mhz) Card or PIN Opening Door Mode

*Less than 0.2 second Response Speed

*Less than 0.5 seconds Proximity Time Distance:

*10cm Proximity Range

*-25℃ to 75℃ Ambient Temperature

*10%-90% Ambient Humidity

*Built-in Antenna

*Built-in LED (Double Color LED)

*Built-in Loud Speaker (Buzzer)

*DC 5V-16V Working Voltage. Standard Direct Current 12V

*70mA Working Current

*100 Meters Communication Distance

*Real Time Data Transfer

*Light Yellow

*PVC Case Material (Black Resin for Water-Proof Function)

*Size: 78*118*23(mm)

Wire Connection:

Red ------------------------------------ DC +12V

Black ----------------------------------------- GND

White -------------------------------------- DATA1

Green -------------------------------------- DATA0

Blue ----------------------------------- ----LED

Yellow -------------------------------------- BEEP
