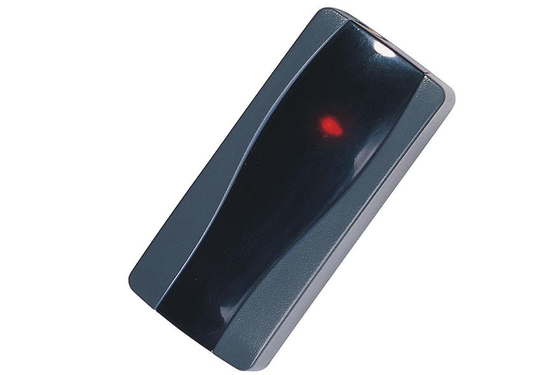

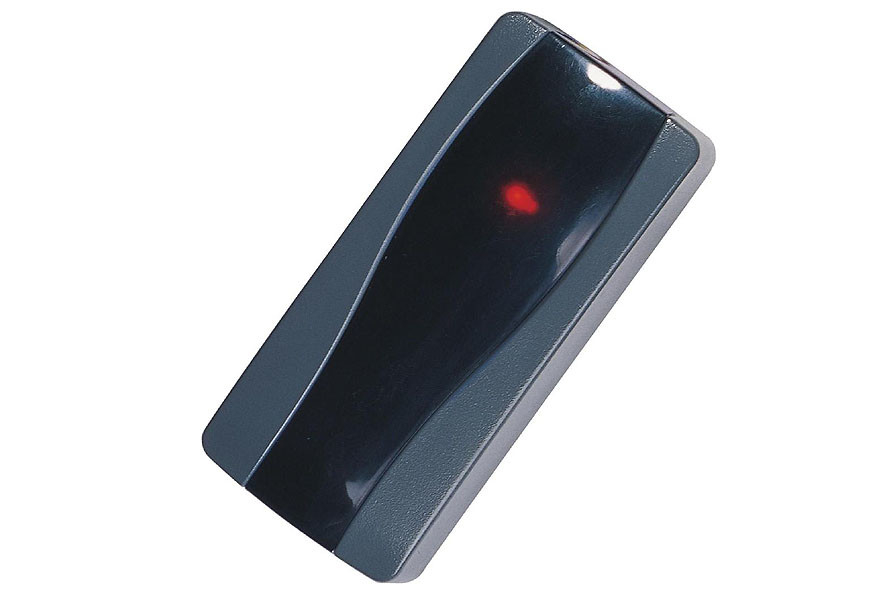

Wiegand 26/34,RS485,RS232 Proximity Card Reader (ERFID08M)

Wiegand 26/34,RS485,RS232 Proximity Card Reader (ERFID08M)

Wiegand 26/34,RS485,RS232 Proximity Card Reader (ERFID08M)

Product Details:

Place of Origin: CHINA
Brand Name: JSUS
Certification: CE
Model Number: 08M

Payment & Shipping Terms:

Minimum Order Quantity: 200PCS
Payment Terms: Western Union, L/C, T/T
Detailed Product Description

When the card approach the reader, the red light turn into green, after glinting to turn redcolor again, the buzzer sound shows transiting data. It has 500ms proximity time distance for card proximity. After finishing card proximity, if the same ID card is still in the proximity range, reader will not send out the data, neither giving any sound hint. But for Different ID card entering Proximity Area, Reader can do response continually and send out the data

Specification
*Wiegand 26bits/ Wiegand34bits /ABA Standard Format Data Output
*Less than 0.2 second Response Speed
*Less than 0.5 seconds Proximity Time Distance:
*2-15cm Proximity Range
*Support UEM 4100 ID Card or compatible with it( 64bits, Manchester Code) and Mifare 1 Card (13.56 MHz Frequency)
*-25℃ to 75℃ Ambient Temperature,10%-90% Ambient Humidity
*Built-in Antenna
*Built-in LED (Double Color LED)
*Built-in Loud Speaker (Buzzer)
*DC 12V Working Voltage,70mA Working Current
*100 Meters Communication Distance
*Real Time Data Transfer
*Black Color
*PVC Case Material (Black Resin for Water-Proof Function)
*119mm*53mm*25mm

Installation
Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.

Wire Connection
Red DC 5V-16V

Black GND

Blue D1

White D0

Brown BEEP

Green LED

Yellow Alarm

Notice

1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply

2. When external Power is used, make sure sharing the power with Controller Box or using the same GND

3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires
