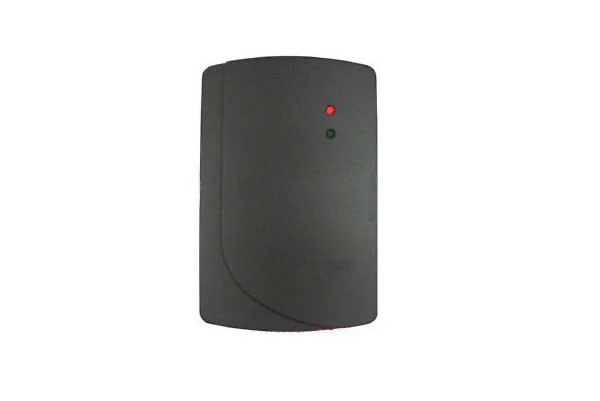

RFID reader for door access control

RFID reader for door access control

RFID reader for door access control

Product Details:

Place of Origin: CHINA
Brand Name: JSUS
Certification: CE
Model Number: 08I

Payment & Shipping Terms:

Minimum Order Quantity: 200PCS
Payment Terms: Western Union, L/C, T/T
Supply Ability: 100000PCS/M
Contact Now
Detailed Product Description

DC 5V-16V Working Voltage
Less than 80mA Static Current
5 to 10CM Reading Range
Support EM-ID Card or MIFARE 1 Card
0 C to 70 C Ambient Temperature
10%~90% Ambient Humidity
International Standard Wiegand Interface
More than 100M Communication Distance

Installation
Using “+”type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.
Wire Connection
Red DC 5V-16V
Black GND
Blue D1
White D0
Brown BEEP
Green LED
Yellow Alarm

Notice!
1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply
2. When external Power is used, make sure sharing the power with Controller Box or using the same GND
3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires
