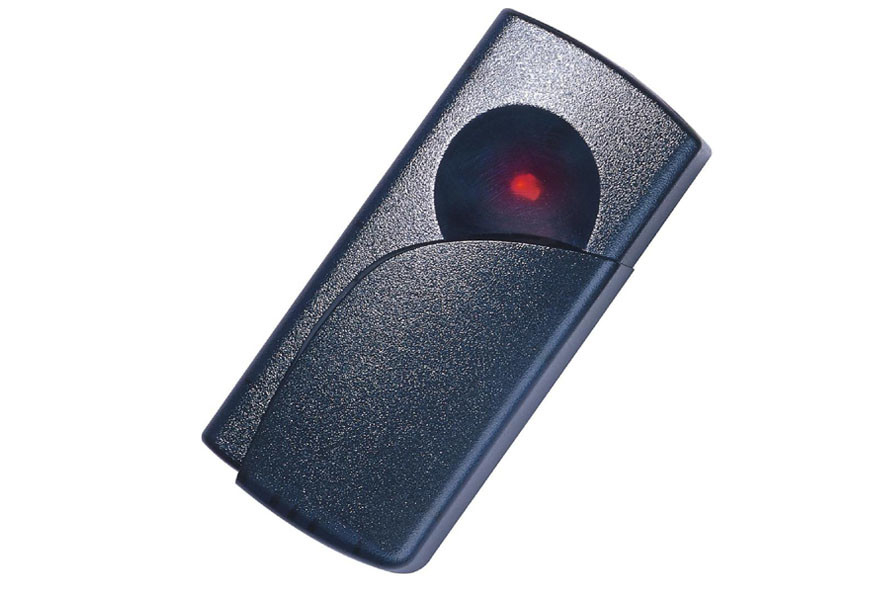

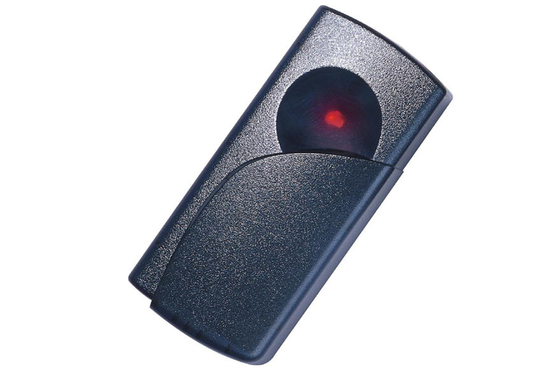

Wiegand 26/34, RS232 or RS485 Proximity Card Reader

Wiegand 26/34, RS232 or RS485 Proximity Card Reader

Wiegand 26/34, RS232 or RS485 Proximity Card Reader

Product Details:

Place of Origin: CHINA
Brand Name: JSUS
Certification: CE
Model Number: 08L

Payment & Shipping Terms:

Minimum Order Quantity: 200PCS
Payment Terms: Western Union, L/C, T/T
Supply Ability: 100000PCS/M
Contact Now
Detailed Product Description

ERFID08L Wiegand 26/34, RS232 or RS485 Proximity Card Reader

Specification

*Less than 0.2 second Response Speed
*Less than 0.5 seconds Proximity Time Distance:
*2-15cm Proximity Range
*Support ID(125 KHz) or Mifare1(13.56 MHz Frequency) Card
*-25C to 75C Ambient Temperature, 10%-90% Ambient Humidity
*Built-in Antenna
*Built-in LED (Double Color LED)
*Built-in Loud Speaker (Buzzer)
*DC 12V Working Voltage, 70mA Working Current
*100 Meters Communication Distance
*Real Time Data Transfer
*Black Color
*PVC Case Material (Black Resin for Water-Proof Function)
*118*52*26(mm)

Installation
Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.

Wire Connection

Red DC 5V-16V

Black GND

Blue D1

White D0

Brown BEEP

Green LED

Yellow Alarm


Notice
1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply

2. When external Power is used, make sure sharing the power with Controller Box or using the same GND

3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires
