Home ProductsRFID EMID mifare proximity reader

5 to 10cm short range 125 kHz or 13.56 MHz reader with wiegand 26, wiegand 34 or RS232 protocol

5 to 10cm short range 125 kHz or 13.56 MHz reader with wiegand 26, wiegand 34 or RS232 protocol

5 to 10cm short range 125 kHz or 13.56 MHz reader with wiegand 26, wiegand 34 or RS232 protocol

Product Details:

Place of Origin: CHINA
Brand Name: JSUS
Certification: CE
Model Number: 08V

Payment & Shipping Terms:

Minimum Order Quantity: 200PCS
Payment Terms: Western Union, L/C, T/T
Supply Ability: 100000PCS/M
Contact Now
Detailed Product Description

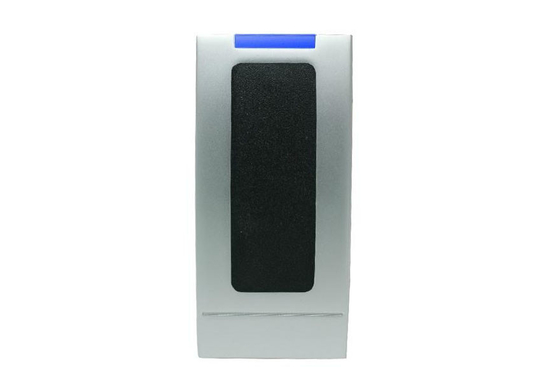

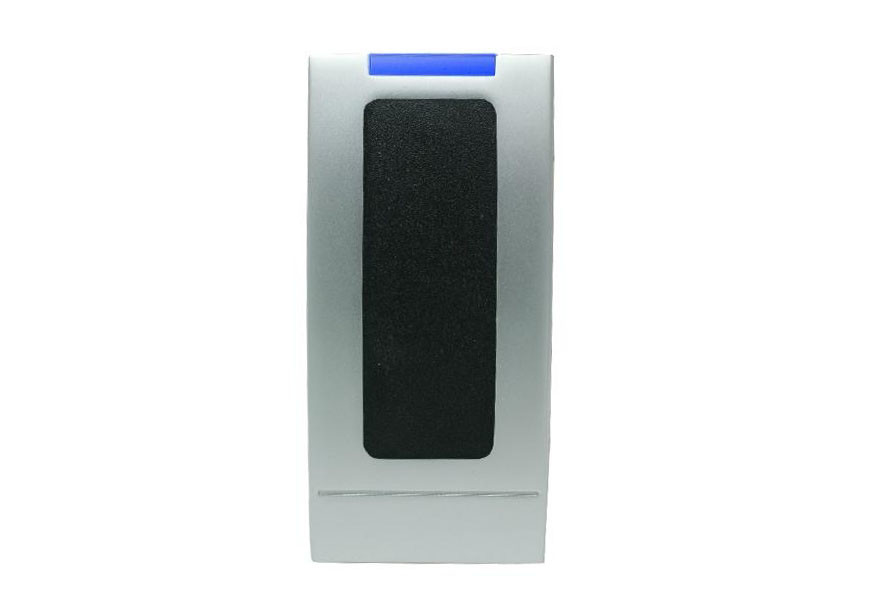

08V 5 to 10cm short range 125 kHz or 13.56 MHz reader with wiegand 26, wiegand 34 or RS232 protocol

Specification

Wire Connection:

WG26/34 RS485 RS232

Red: DC 9V-16V Red: DC 9V-16V Red: DC 9V-16V

Black:GND Black:GND Black:GND

Green:D0 Green:4R+ Green:RX

White:D1 White: 4R- White:TX

Blue: LED

Yellow:BEEP

Gray :Door Bell

Purple: Door Bell

*Wiegand 26bits/ Wiegand34bits or RS232 Standard Format Data Output

*Less than 0.2 second Response Speed

*5-10cm Proximity Range

*Ambient Temperature:-25℃ to 75℃

*Ambient Humidity: 10%-90%

*Built-in Antenna

*Built-in LED (Double Color LED)

*Built-in Loud Speaker (Buzzer)

*DC 9V-16V Working Voltage. Standard 12V,70mA Working Current

*100 Meters Communication Distance

*Real Time Data Transfer

*PVC Case Material

*With Water-Proof Function

*Audiovisual indication: When a registered card is presented to the reader, the red LED flashes green and the beep sounds.

*103*48*21(mm)

*Package: 100pcs per carton. Carton Size: 43.5*56*23(cm)
