5 to 10 cm short range 125 KHz or 13.56 MHz reader with wiegand 26, wiegand 34 protocol

5 to 10 cm short range 125 KHz or 13.56 MHz reader with wiegand 26, wiegand 34 protocol

5 to 10 cm short range 125 KHz or 13.56 MHz reader with wiegand 26, wiegand 34 protocol

Product Details:

Place of Origin: CHINA
Brand Name: JSUS
Certification: CE
Model Number: 101A

Payment & Shipping Terms:

Minimum Order Quantity: 200PCS
Payment Terms: Western Union, L/C, T/T
Supply Ability: 100000PCS/M
Contact Now
Detailed Product Description

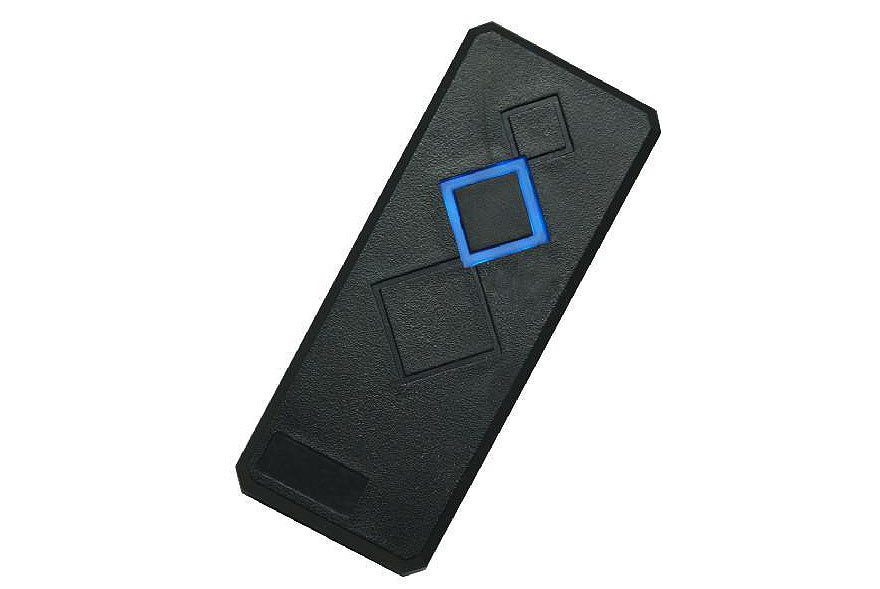

101A 5 to 10 cm short range 125 KHz or 13.56 MHz reader with wiegand 26, wiegand 34 protocol

Specification

*Wiegand 26bits/ Wiegand34bits Standard Format Data Output

*Less than 0.2 second Response Speed

*5-10cm Proximity Range

* Support EM-ID, M1card, 15693card, 14443A or 14443B Card

*Ambient Temperature:-25℃ to 75℃

*Ambient Humidity: 10%-90%

*Built-in Antenna

*Built-in LED (Double Color LED)

*Built-in Loud Speaker (Buzzer)

*DC 9V-16V Working Voltage. Standard 12V, 70mA Working Current

*90 Meters Communication Distance

*Real Time Data Transfer

*With Water-Proof Function

*Audiovisual indication: When a registered card is presented to the reader, the re

LED flashes green and the beep sounds.

*102*43*16(mm)


*Package: 100pcs per carton. Carton Size: 43.5*56*23(cm)



5 to 10 cm short range 125 KHz or 13.56 MHz reader with wiegand 26, wiegand 34 protocol5 to 10 cm short range 125 KHz or 13.56 MHz reader with wiegand 26, wiegand 34 protocol5 to 10 cm short range 125 KHz or 13.56 MHz reader with wiegand 26, wiegand 34 protocol5 to 10 cm short range 125 KHz or 13.56 MHz reader with wiegand 26, wiegand 34 protocol
