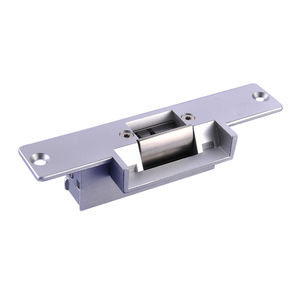

Standard-type Electric Strike

Product Details:

Place of Origin:	CHINA
Brand Name:	JSUS
Certification:	CE,ROHS
Model Number:	Y-130

Payment & Shipping Terms:

Minimum Order Quantity:	100PCS
Price:	FOB SHENZHEN USD
Delivery Time:	3-5DAYS
Payment Terms:	L/C,T/T,PAYPAL, WESTERN UNION
Supply Ability:	100,000PCS/MONTH

Contact Now

Detailed Product Description

Y-130 NO/NC is designed for wooden door, metal door, PVC door and so on. The products of our company is variety and full-equipped. Electric strike has two work modes: one is the mode of lock with power outage, it means that when in the situation of power

Product Parameter Parameter Description Lock Size 150Lx39.5Wx28H(mm) lt structure Stainless Steel Holding Stength 500kg Voltage DC12V Current 450mA(YS-130NO); 200mA(YS-130NC) Feature Fail Secure(YS-130NO) ;Fail Safe(YS-130NC) Suitable For Wooden Door,Metal Door,PVC Door Surface Temperature Within +20℃ Suitable Temperature -10~+55℃(14-131F) Operating Humidity 0～90%(non-condensing) Face plate Housing Painted Steel Bolt Housing Stainless steel,Draw the Polishing of silk Function Built-out MOV Optional Accessories YS-305 YS-306 Weight 0.4kg
