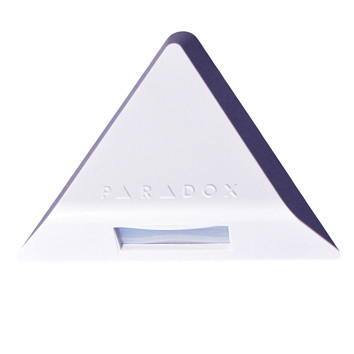

Vertical protection dual infrared detector

Vertical protection dual infrared detector

  • Vertical protection dual infrared detector
Vertical protection dual infrared detector
Product Details:
Place of Origin: China
Brand Name: JSUS
Certification: CE&ROHS
Model Number: JS-RD61
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: USD FOB SHENZHEN
Delivery Time: 5-7days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 100,000sets/month
Contact Now
Detailed Product Description

Model:JS-RD61


Product Features:

Protection range: 6.6 meters x 4.5 meters wide (used in anti-theft system), 2.1 meters x 1.5 meters wide (used in access control systems)

Beam Angle: Vertical 00 or 100, the lens adjustable

Metal shields: Anti RF interference

Alarm Display: Green LED lights

Alarm Time :0.5-25 seconds adjustable

Alarm Output: normally closed or normally open, 28Vdc 0.15A

Tamper: Normally closed, open the cover is removed, 0.15 *, 28 * dc

Humidity: 95%

Weight: 85 g

Size: 114 × 93x35mm (W x H x D)
JS－460

Sensor

Low-noise high sensitivity dual rectangle infrared

Processor

Two automatic pulse, automatic temperature compensation

Detectionspeed

0.2－7m/s

Sensitivity

Two adjustable

Operating Temperature

－10℃-50℃

Power Input

9－16Vdc / 20-27Vdc,18mA

Lens

Fresnel lenses vertical protection

The scope of protection

6.6 meters x 4.5 meters wide (used in anti-theft system)

2.1 meters x 1.5 meters wide (used in access control systems)

Beam angle

Vertical 00 or 100, the lens adjustable

Metal shield

RF Immunity

Alarm Display

Green LED lights

Alarm Time

0.5-25Seconds adjustable

Alarm Output

Normally closed or normally open, 28Vdc 0.15A

Tamper switch

Normally closed, open the cover is removed, 0.15 *, 28 * dc

Humidity  95%

Weight  85g

Size  114×93x35mm
