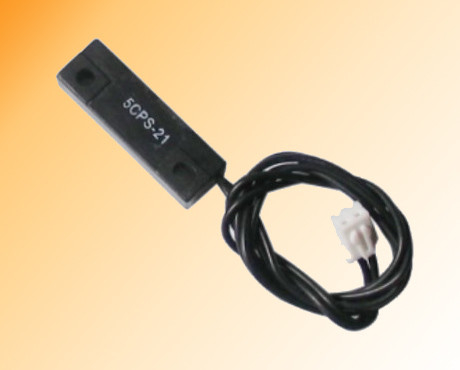

magnetic proximity switch sensor

Product Details:

Place of Origin:	CHINA
Brand Name:	JSUS
Certification:	CE&ROHS
Model Number:	PS-21

Payment & Shipping Terms:

Minimum Order Quantity:	500PCS
Delivery Time:	5-8DAYS
Payment Terms:	Western Union, L/C, T/T

Contact Now

Detailed Product Description

Model:PS-21

Product name: magnetic proximity switch
Certificates:CE & ROHS
Dimension:29*10*6 mm
Output:NO or NC

Housing Material: ABS,black
Wires: 350mm length
Sensitivity:10-15AT, 15-20AT and 20-25AT are optional.
Operating Temperature: -10℃~125℃
Conatact Rating:10W
Switching Current:0.5A
Carrying Current:1.0A
Switching Voltage:100VDC
Breaking down Voltage: 200VDC
Initial Resistance: >200mΩ
Package:1000pcs/carton, 15KGS
Magnet available.
