Horizontal install float level sensor

Horizontal install float level sensor

  • Horizontal install float level sensor
Horizontal install float level sensor
Product Details:
Place of Origin: CHINA
Brand Name: JSUS
Certification: CE&ROHS
Model Number: FS-YZ-2
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Delivery Time: 5-8DAYS
Payment Terms: Western Union, L/C, T/T
Contact Now
Detailed Product Description

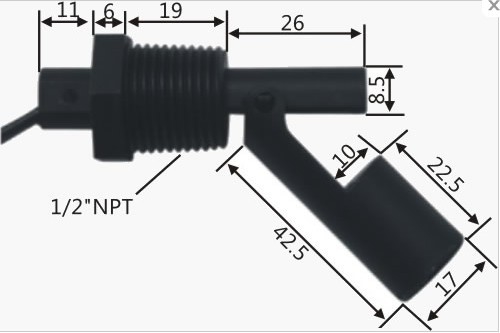

FS-YZ-2 Horizontal install float level sensor

Type: NO

Max. Contact Rating:10W or 50W
Max. Switching Voltage: 00VDC/220VDC
Max. Switching Current:0.5A/1.5A
Min. Breakdown Voltage:220VDC/300VDC
Max. Carry Current:1A/3A
Max. Initial Contact Resistance: (not include the wire)100m Ω
Temperature Rating:-10 ~ +85 ℃
Float Ball Material:PP
Float Body Material:PP
Screw Nut Material: ABS
E-Ring Material:PP
