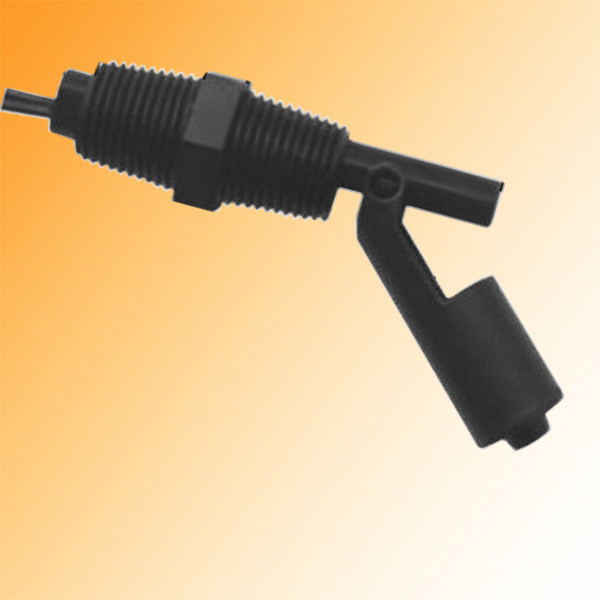

Horizontal install float level sensor

Horizontal install float level sensor

  • Horizontal install float level sensor
Horizontal install float level sensor
Product Details:
Place of Origin: CHINA
Brand Name: JSUS
Certification: CE&ROHS
Model Number: FS-YZ-3
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Delivery Time: 5-8DAYS
Payment Terms: Western Union, L/C, T/T
Contact Now
Detailed Product Description

FS-YZ-3

Horizontal install float level sensor

Type: NO
Max. Contact Rating:　10W 50W
Max. Switching Voltage: 100VDC　 220VDC
Max. Switching Current: 0.5A 1.5A
Min. Breakdown Voltage:　220VDC 300VDC
Max. Carry Current: 1A 3A
Max. Initial Contact Resistance: (not include the wire)　100m Ω
Temperature Rating:　-10 ~ +85 ℃
Float Ball Material:　PP
Float Body Material:　PP
Screw Nut Material: ABS
E-Ring Material: PP
