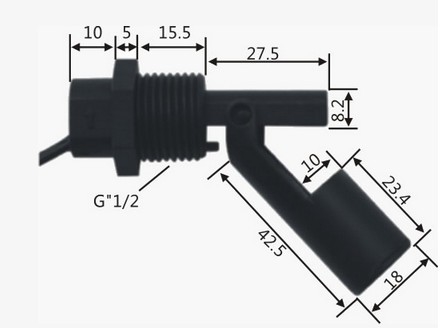

Horizontal install float level sensor

Horizontal install float level sensor

  • Horizontal install float level sensor
Horizontal install float level sensor
Product Details:
Place of Origin: CHINA
Brand Name: JSUS
Certification: CE&ROHS
Model Number: FS-YZ-8
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Delivery Time: 5-8DAYS
Payment Terms: Western Union, L/C, T/T
Contact Now
Detailed Product Description

  • FS-YZ-8

    Horizontal install float level sensor

    Type: NO

    Max. Contact Rating:　10W 50W
    Max. Switching Voltage: 100VDC　 220VDC
    Max. Switching Current: 0.5A 1.5A
    Min. Breakdown Voltage:　220VDC 300VDC
    Max. Carry Current: 1A 3A
    Max. Initial Contact Resistance: (not include the wire)　100m Ω
    Temperature Rating:　-10 ~ +85 ℃
    Float Ball Material:　PP
    Float Body Material:　PP
    Screw Nut Material: ABS
    E-Ring Material: PP
