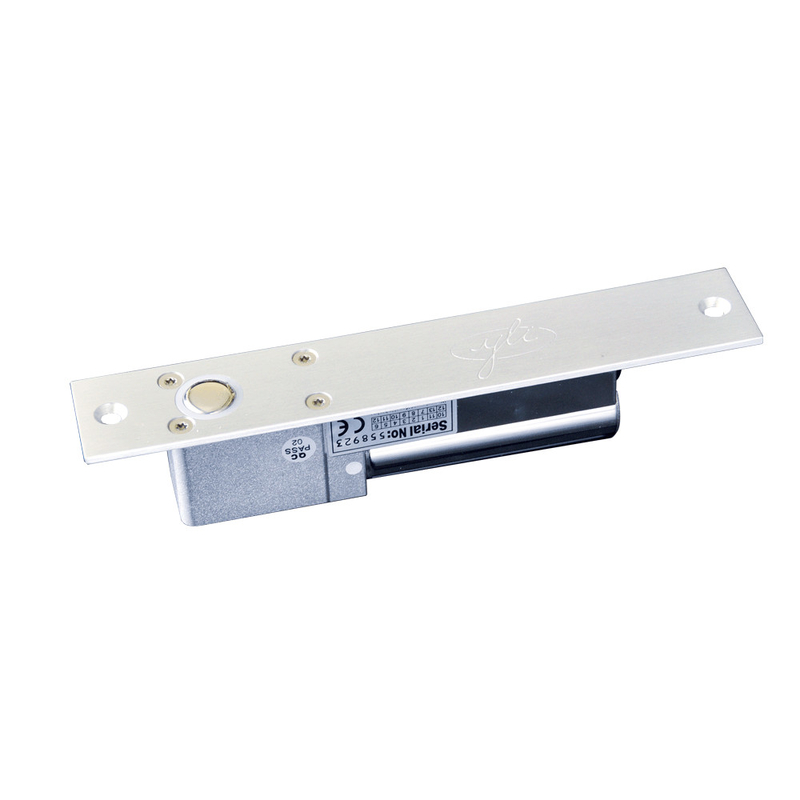

Fail safe electric bolt W/signal

Fail safe electric bolt W/signal

  • Fail safe electric bolt W/signal
Fail safe electric bolt W/signal
Product Details:
Place of Origin: CHINA
Brand Name: JSUS
Certification: CE
Model Number: Y100
Payment & Shipping Terms:
Minimum Order Quantity: 200PCS
Payment Terms: Western Union, L/C, T/T
Supply Ability: 100000PCS/M
Contact Now
Detailed Product Description

Y100 is a fail safe electric bolt suitable for glass door, wooden door, metal door . We supply integrity equipment to collocate with fully frameless glass door, swing-in door and so on. Build-in Photoelectricity control and low tempreture design



<table "="" border="1" cellspacing="0" cellpadding="0" width="100%" bgcolor="#e5e5e5" style="color: rgb(0, 51, 64); font-family: Tahoma, Arial, Verdana, Helvetica, sans-serif; font-size: 12px; line-height: 18px; word-wrap: break-word;">

Product Parameter Parameter Description Fail Safe Locked when energized Face Plate 205Lx35WX41H(mm) Strike 90Lx25Wx2H(mm) Bolt 16mmDIA,stainless steel 16mm throw Voltage 12VDC Start Current 900mA Standby Current 100mA Solid Bolt polishing housing, 800Kg Holding Force Suitable For Woodeng Door,Glass Door,Metal Door,Glass Door Signal Output Door status Output,NC/COM Surface Temp Low Temperature Induction Distance 8mm Operating temp -10～+55℃(14~131F) Operating Humidity 0～90%(non-condensing) Special Designed Tested to 500000 cycles Face place material High Aluminum,Carrulous Line Finished Weight 0.7k
