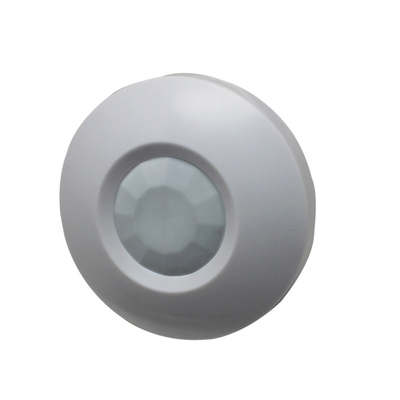

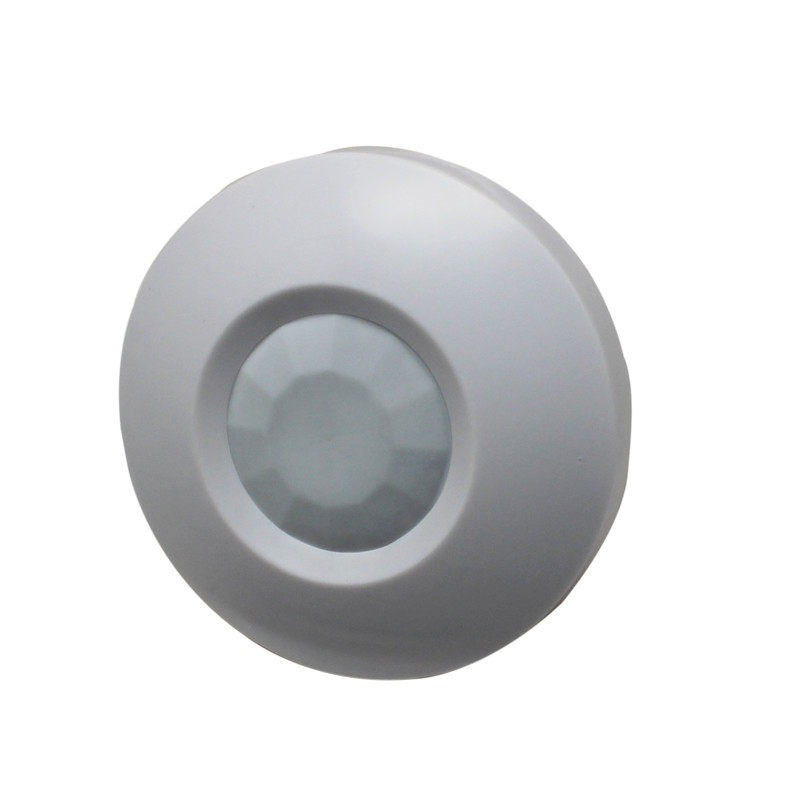

Wide Angle PIR Detector

Wide Angle PIR Detector

  • Wide Angle PIR Detector
Wide Angle PIR Detector
Product Details:
Place of Origin: China
Brand Name: JSUS
Certification: CE&ROHS
Model Number: JS-RD73
Payment & Shipping Terms:
Minimum Order Quantity: 300pcs
Price: USD FOB SHENZHEN
Delivery Time: 5-7days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 100,000sets/month
Contact Now
Detailed Product Description

Item No.:JS-RD73

PIR Detector



Main Feature

Intelligent logic control; Anti-false alarm efficiently; Auto temperature compensation;
Pulse count adjustment; Anti RFI, Anti white light interference; Alarm output NC/NO optional

PACKING

Model

  JS-73A

      JS-  73B

      JS-  73C

    JS-73D



Unique Feature



Alarm direction  of                entry / exit optional



Operating Voltage

DC9-16V

Carton size:

Static Current

≤15mA@NC,≤9mA@NO

55 x 35.5 x 29cm

Alarm Current

≤9mA@NC,≤18mA@NO

Qty / Ctn: 100pcs

Installation Type

Celling mounted

Wall / Corner mounted

GW/Ctn: 16-20kgs

Detecting Angle

360°

15°

Individual gift box

Detecting Distance

6m

9m



Work Environment

Operation Temperature-10°C~+55°C,  Operation Humidity: <95%



Dimension

123*62*46mm

          95*55*42mm

           76*24*31mm
