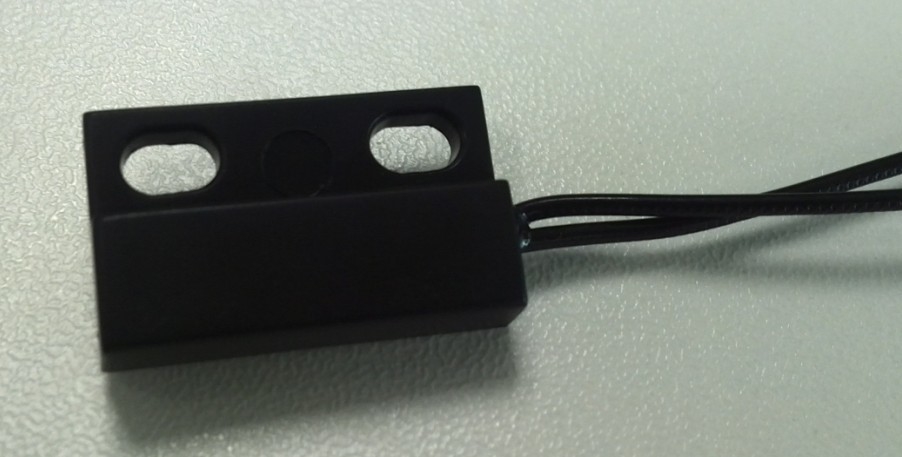

magnetic proximity switch sensor

Product Details:

Place of Origin:	CHINA
Brand Name:	JSUS
Certification:	CE&ROHS
Model Number:	PS-39

Payment & Shipping Terms:

Minimum Order Quantity:	500PCS
Delivery Time:	5-8DAYS
Payment Terms:	Western Union, L/C, T/T

Contact Now

Detailed Product Description

Model:PS-39
Brand:JSUS
Certificates:CE, ROHS
Dimension: 23*14*6mm
Output:NC, NO
Housing Material:ABS, grey / black / white.
Sensitivity: 10-15AT without magnet, 15-20AT and 20-25AT are optional.
Operating Temperature: -10℃~125℃.
Conatact Rating:10W
Switching Current:0.5A
Carrying Current:1.0A
Switching Voltage:100VDC
Breaking down Voltage:200VDC
Initial Resistance:>200mΩ
Package:1600pcs/carton,18KGS
Magnet available.
